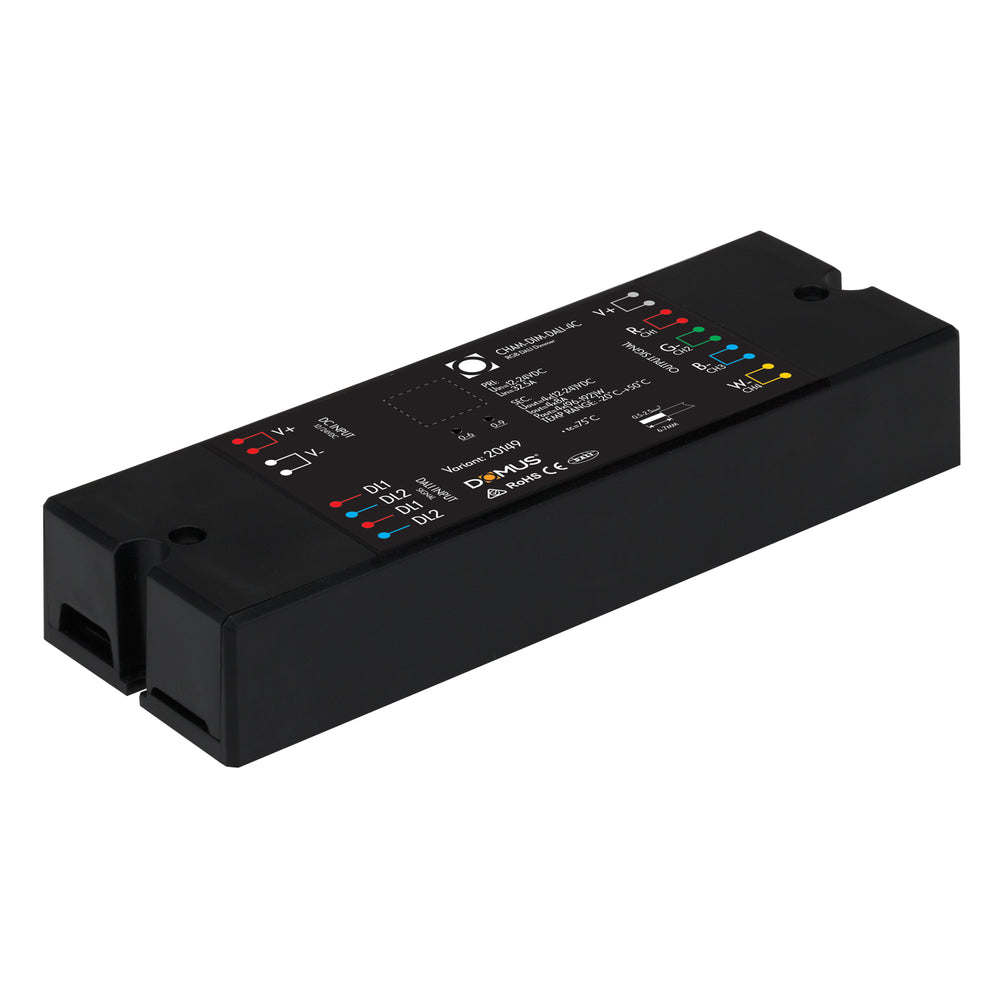

Domus CHAM-DIM-DALI-4C RGBW DALI Interface

The CHAM-DIM-DALI-4C is an interface designed to suit DALI dim applications. Intended for use with constant voltage 12-24VDC lighting products the CHAM-DIM-DALI-4C offers seamless integration between automation systems. Accepts standard DALI signal generated from any automation system. Featuring 1-4CH of dimming, allowing control over single colour, RGB or RGBW LED lighting products. The CHAM-DIM-DALI-4C make integration a breeze with options for Auto addressing or manual addressing function.

Requires: Constant voltage LED driver required (not included) product dependant

• Three Year Replacement Warranty

Specifications:

• Type of interface: 1-4ch dim controller (selectable)
• Method of control: DALI signal*
• Method of dimming: PWM (Pulse width modulation)
• Housing colour: Black plastic colour housing
• Housing size (mm): (L) 169 x (W) 58mm x (H) 28mm
• Digital display: Yes
• Input voltage (VDC): 12-24VDC
• Output voltage (VDC): 12-24VDC
• Output current (A): 4x8A
• Output wattage (W): 12VDC-96W per channel (x4)
• 24VDC- 192W per channel (x4)
• Expandable signal: Yes**

* Accepts signal generated from automation systems via a DALI gateway (Type 6 devise).
** 4CH data repeater recommended for loads that exceed the CHAM-DIM-DALI-4C limits. CHAM-05 (20114) not included.
