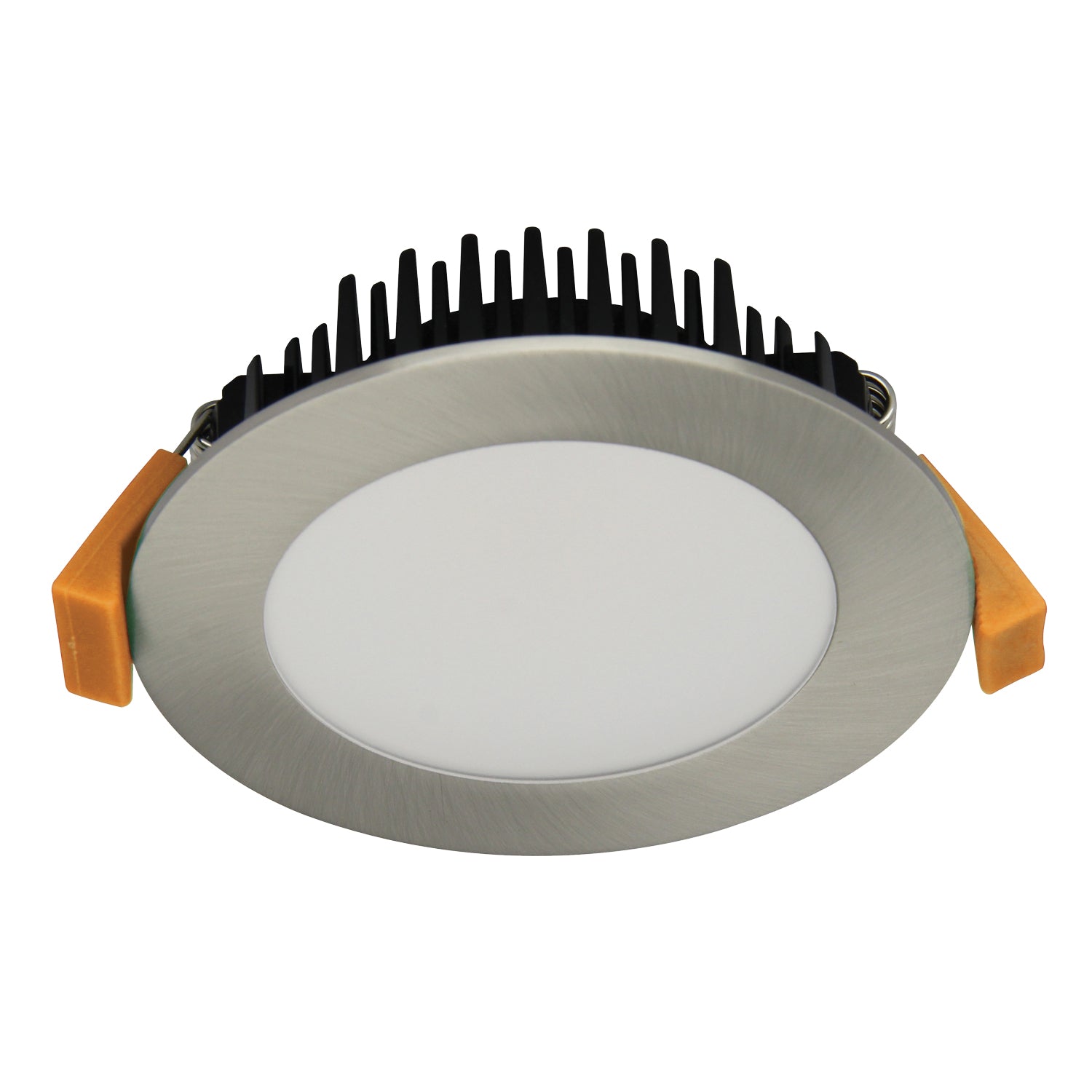

Domus TEK-10-TRIO 10W 240V AC Fixed LED Downlight

The TEK range of LED downlights have been designed with slim features to blend in with the ceiling. Featuring a flat face, wide light distribution and an ultra slim housing, makes this downlight suitable for installations where ceiling space is minimal. Complete with a dimmable LED driver and flex and plug. Fully dimmable with Domus dimmer series. Now with TRIO, the added option of changing the colour temperature output of the downlight with a dip switch at the back of the fitting.

• TRIO Colour Selectable - 3000K, 4000K, & 5700K
• Brushed Chrome finish
• Three Year Replacement Warranty

Specifications:

• Input Voltage: 240V AC
• Power (W): 10W
• IP rating (IP): 44*
• Lumens (lm): Warm White 3000K - 700lm | Neutral White 4000K - 750lm | White 5700K - 800lm
• LED type: SMD
• CCT: 3000K - 4000K - 5700K (Switchable)
• CRI: ≥80
• Beam angle (°): 90°
• Dimmable: Yes**
• Lifespan (hrs): 50,000hrs
• Cutout (Ø): Ø90-95mm

* IP44 rating is from the underside of the down light once installed into the ceiling.
** Tested on the Domus dimmer series. May work on others but not tested.

Dimensions:

• Height: 31mm
• Diameter: 101mm

DOWNLOAD DATA SHEET
