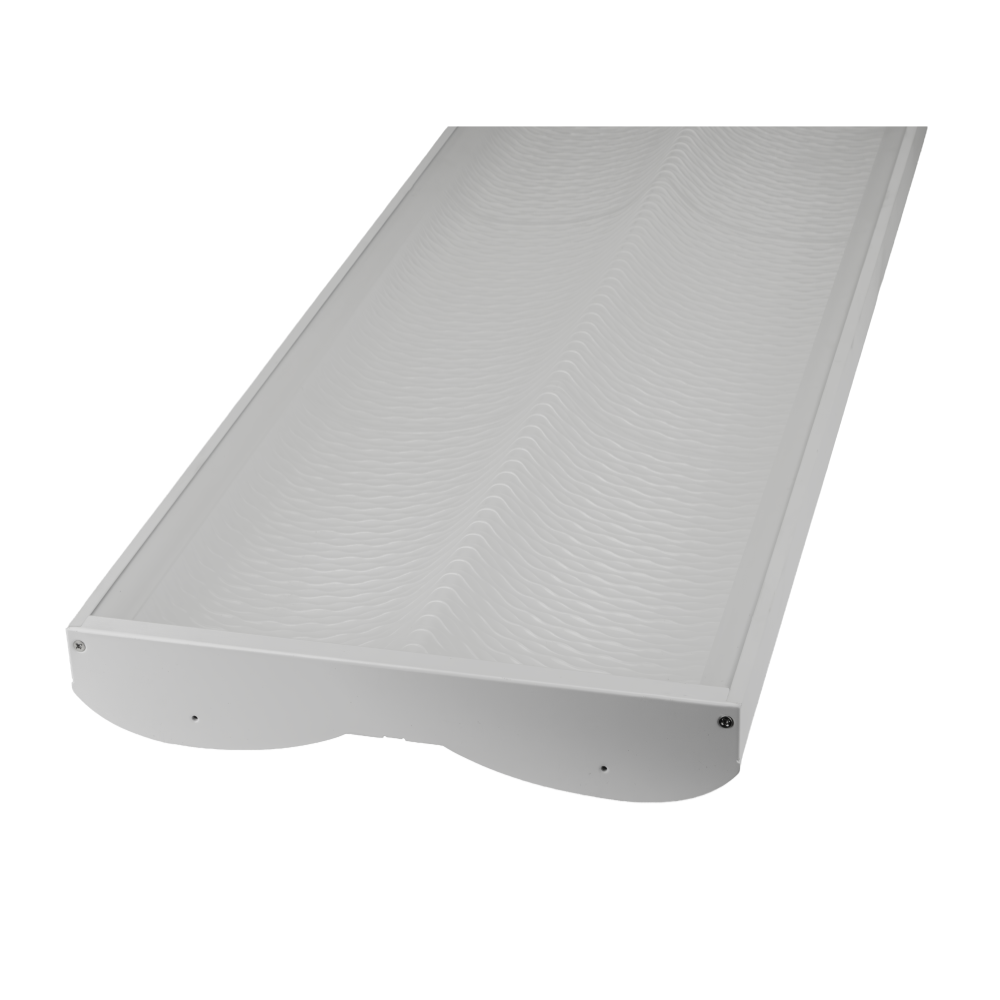

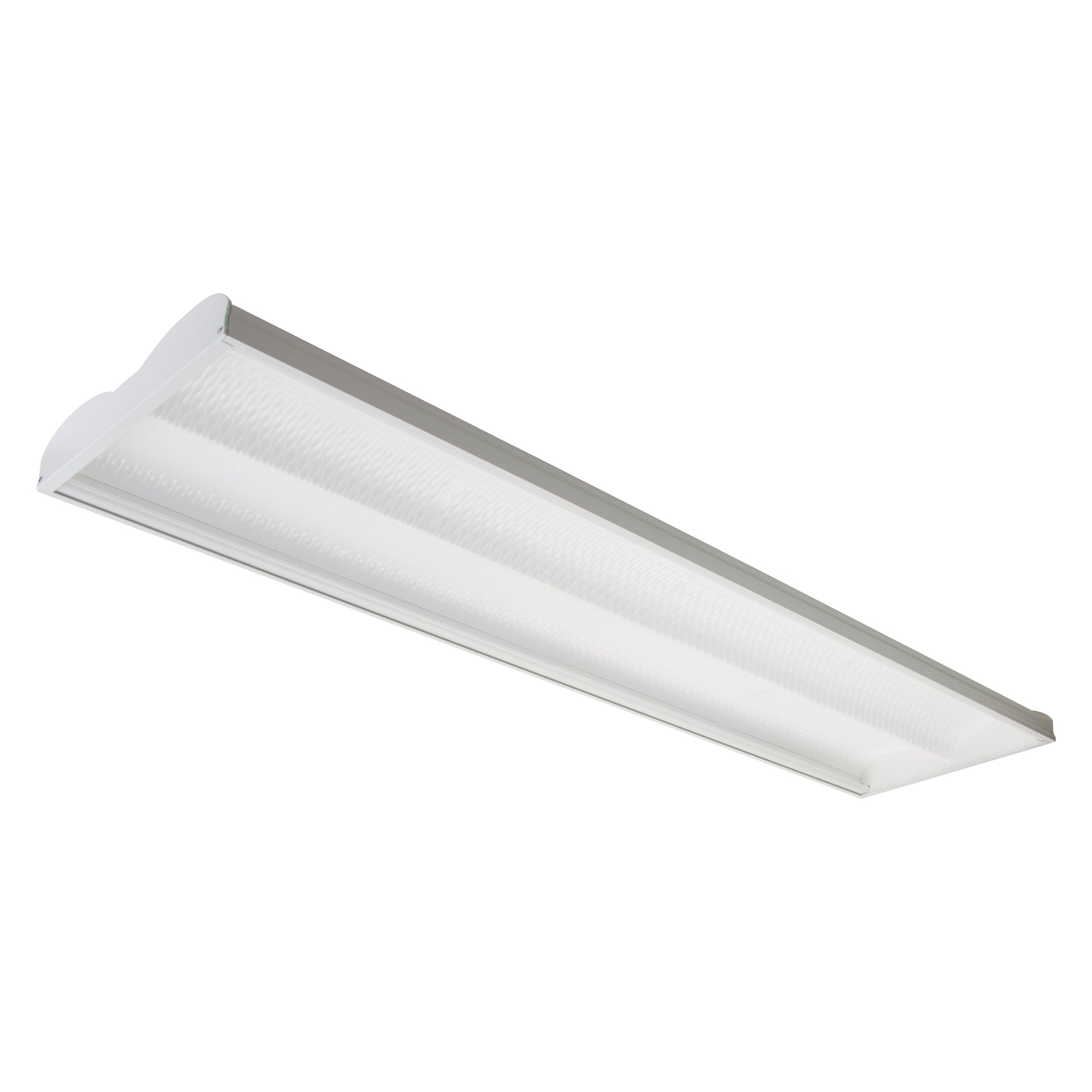

PHASE-1230 LED troffer series for suspended and plaster set ceiling applications. Phase-1230 offers an energy efficient solution to conventional fluorescent luminaires,
offering low glare by integration of its uniquely formed reflector and indirect illumination. Integrating SAMSUNG SMD LED technology, PHASE-1230 is available in 27W and 38W models, offering high lumen output of up to 3150Lm and 4000Lm respectively. Die-cast
aluminium and polycarbonate body construction, with polycarbonate lens making PHASE-1230 applicable as a sealed IP44 luminaire. Mains dimmable, 0-10V DALI-2/DSI or Bluetooth dimming optional. Surface mount and plaster recessed kit available on request. Cyanosis Observation Index (COI) compliance available on request.
LIMITED STOCKS - WHILE STOCKS LAST!!!
- Single Colour Temperature - 5000K White
- 1 Year Replacement Warranty
- Non-dimmable
Specifications:
- Input Voltage (V): 240V AC
- Power (W): 27W LED
- IP Rating: IP44
- Dimmable: No
- Lumen Output: 3150Lm
- LED Type: High efficiency SMD LED
- Colour Temperature: 5000k White

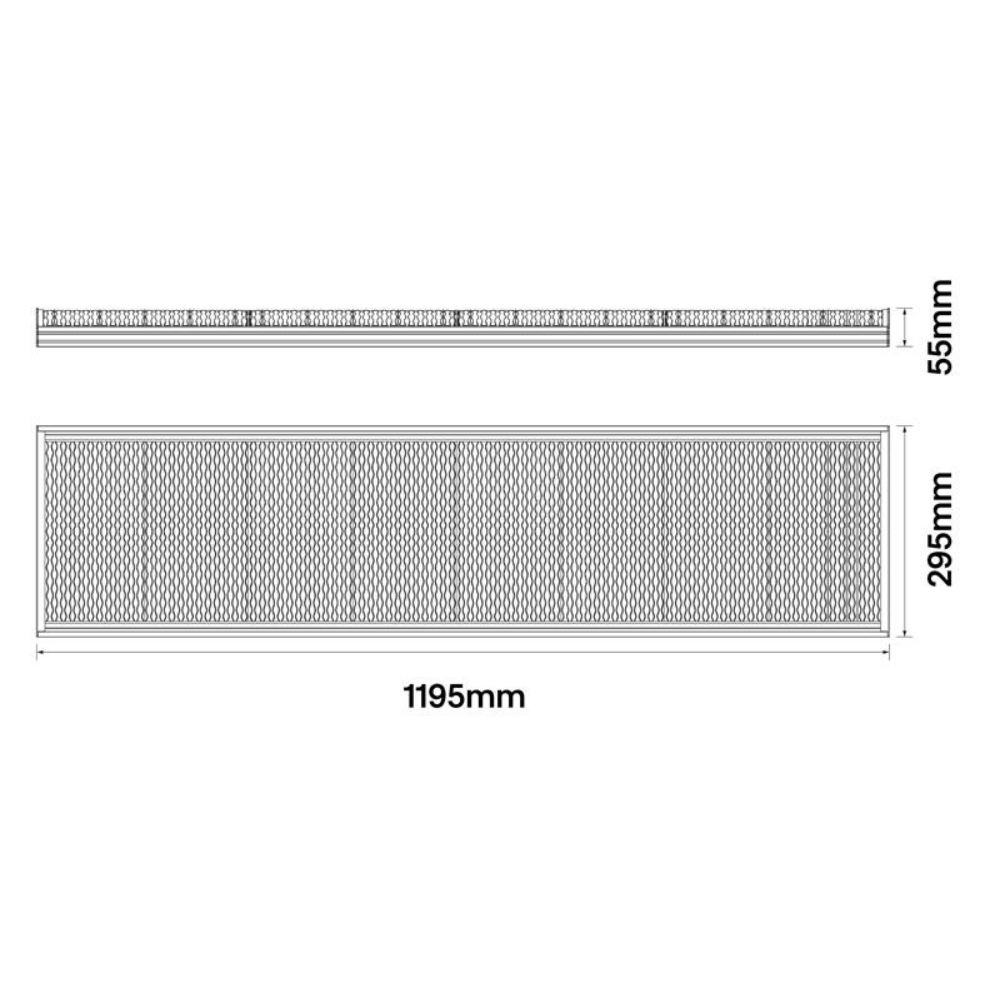

Dimensions:
- Length: 1195mm x Width: 295mm x Height: 55mm
Variant Code:
DOWNLOAD DATA SHEET
