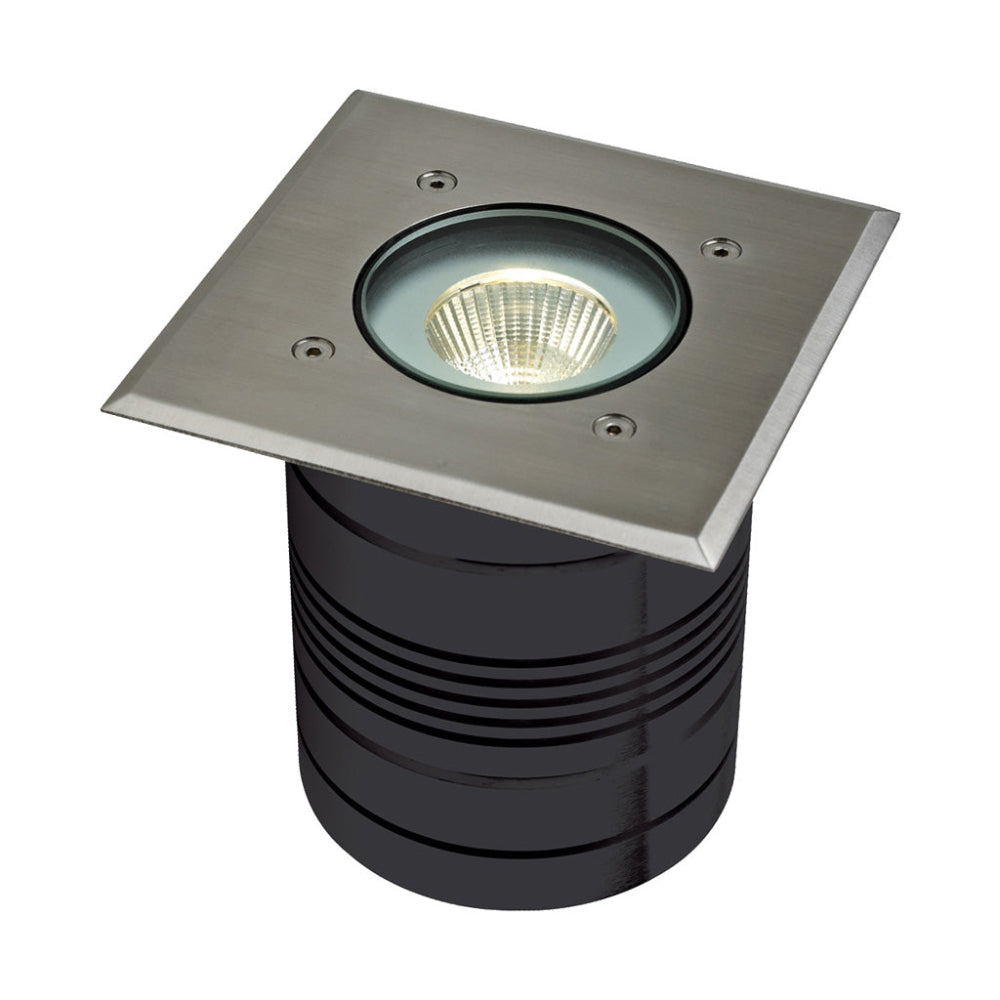

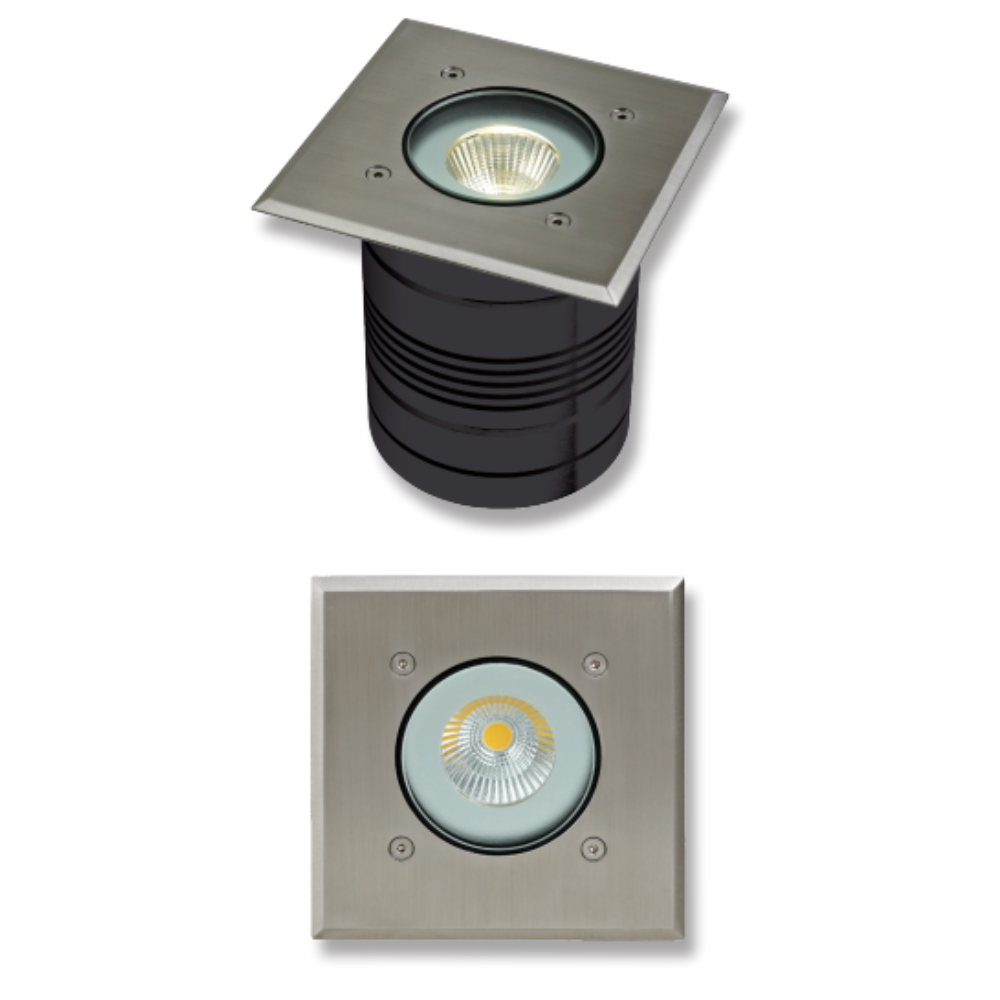

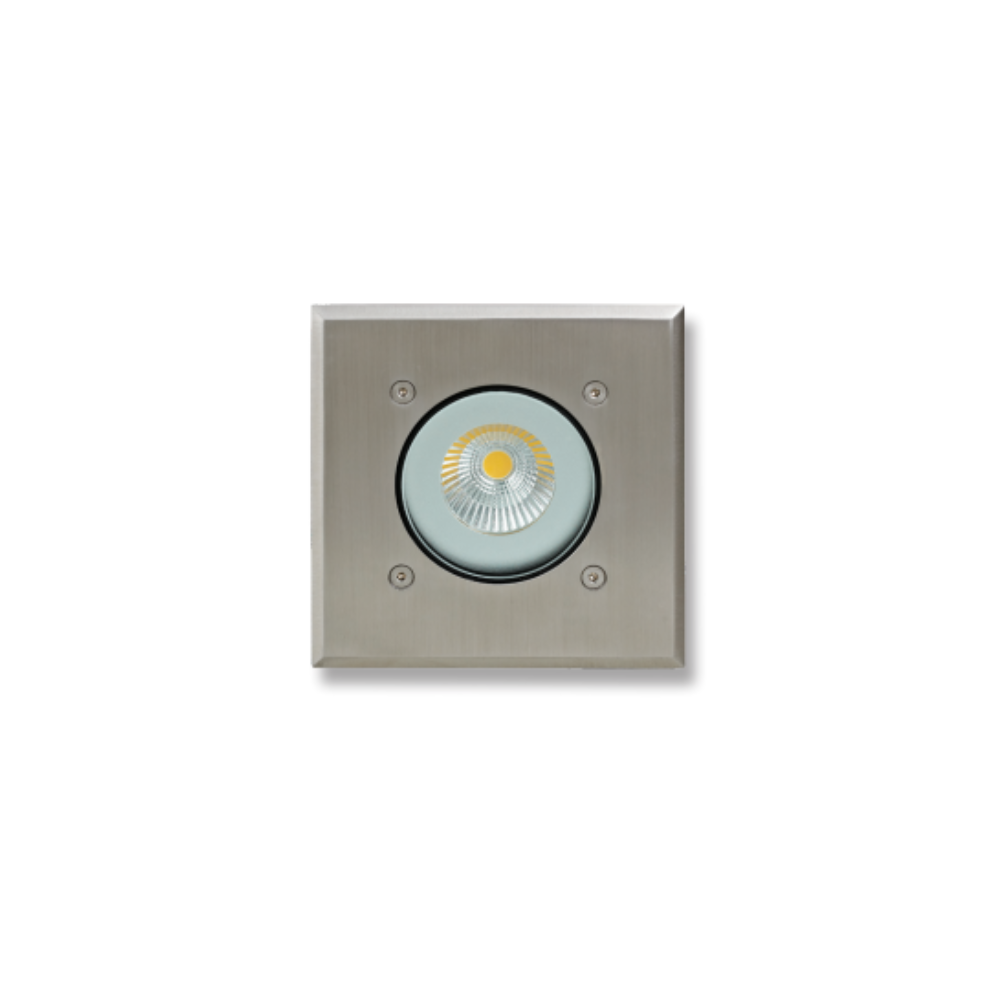

The MODULA luminaire provides a practical solution for all inground lighting applications including pathways, driveways, courtyards and decks. Utilising a solid aluminium CNC machined external fascia plate in anodised Titanium finish coupled with a 6063 graded aluminium body in a black anodised finish. The MODULA recessed inground luminaire utilises the latest in Citizen COB technology offering unsurpassed performance and optical lighting control. A polycarbonate housing is provided for concrete applications. The MODULA is a fantastic addition when used as a source for tree up lighting or external fascia, garden walls.
LIMITED STOCKS - WHILE STOCKS LAST!!!
Requires: 24V DC Constant Voltage LED Driver - Wire in Parallel
- Single Colour Temperature 3000K & 5000K available
- Solid Aluminium fascia plate in anodised Titanium finish
- 6063 graded Aluminium body in black anodised finish
- Three Year Replacement Warranty
Specifications:
- Input Voltage: 24V DC*
- Power (W): 9W LED
- IP Rating (IP): IP65
- Lumen Output (Lm): Warm White 3000K - 900Lm / White 5000K - 950Lm
- LED Type: Citizen COB
- Colour Temperature: 3000K - 5000K
- CRI: ≥83
- Beam angle (°): 45°
- Dimmable: No
- Lifespan (hrs): 50,000hrs
- Cutout (Ø): Ø105mm
*Requires 24V DC Constant Voltage LED Driver - Wire in Parallel
Dimensions:
- Length: 125mm x Width: 125mm
- Height: 110mm
- Cutout Size: Diameter Ø105mm x Depth 140mm
Variant Code:
- 3000K - 19422
- 5000K - 19423
DOWNLOAD DATA SHEET
